European quality Silo Roof Making Machine

  • European quality Silo Roof Making Machine
  • European quality Silo Roof Making Machine
  • European quality Silo Roof Making Machine
  • European quality Silo Roof Making Machine

European quality Silo Roof Making Machine

    Payment Type: L/C,T/T,D/P,Western Union
    Terms of Trade: FOB,CFR,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 45 Days
    Packaging: standard package or ccording to customer's requirement
    Productivity: 100
    Brand: Taigong
    Transportation: Ocean,Land
    Place of Origin: Hebei
    Supply Ability: 30sets / month
    Certificate: ISO, CE, SGS
    HS Code: 84552210
    Port: Tianjin,Qingdao,Shanghai

Basic Info

Model No.: TG-Y-Silo

Product Description

Silo Roof Machine is one part of the Silo Roll Forming Machine, the finished priduction is the cap of the silo . This production line contains : Uncoiling --leveling --edge trimming --slitting -- notching --guillotine --punching --profile exchanging --second forming -- punching --edge bending -- stacking automaticlly , We also supply the Silo Stiffener Roll Forming Machine, Silo Panel Machine, for more info please contact with us.


Equipment Description

1. Profile Drawing and Products for Reference :

webwxgetmsgimg (2)

1238088776


2. The Chart of Process flow:

De-coiler---Leveling--Punching--Roll forming---Hydraulic Cutter-Output Table



3. The equipment including :

Working Area

Specific Process

Quantity/Unit

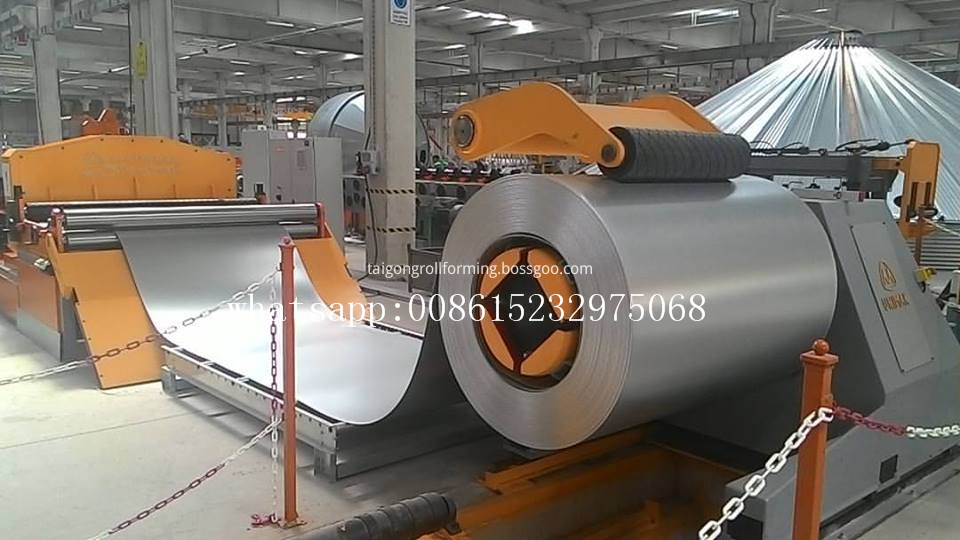

Decoiler

Loading trolley

1

Decoiler

1

Leveling

1

Oblique Shear

1

Dividing, Pretreatment

Oblique Slitter

1

Excess material head removal, end cutting

1

Sheet rounding and collecting device

1

Roll Forming,

Punching

Sheet Conveyor

1

Pneumatic Suction Cup

1

Guiding

1

Roll Forming

1

Punching

1

Secondary roll forming, punching

Guiding

1

Roll Forming

1

Punching

1

Flange, automatic palletizing

Storage rack

1

End flange

1

Pneumatic suction cup automatic palletizing

1

Hydraulic and pneumatic systems

1

PLC control system

1

4. Technical specification and details of c channel machine :

Cassette structure + gear box driving,


(There will be ahydraulic pallet In front of the forming machine which including the pallet and hydraulic cylinder )

Suitable Material Thickness: 1.2--2.5mm

Suitable Material: SCG490 ( Yield Strength: 490Mp )




Sitable Material width: 1250mm,( 56465285, 56421091, Not affected by material thickness )

roduct specifications: as per customer required ( final profile drawing)

Shaft diameter: 160mm,

Forming stations: 18 Rows,

Roller material: Gcr15 air-hardening hardness of HCR58-62 ,

Shaft material: 45# steel precision machined conditioning treatmennt,

Cassette arch model: GY180 Enhanced,

Forming machine power : 55KW ( Frequency, with brake ),

Reducer speed ratio by molding speed at 8 m / min,


5. Machine Overview:

webwxgetmsgimg (10)

webwxgetmsgimg (8) shhuy

webwxgetmsgimg (8) dsds

webwxgetmsgimg (21)

1380203439

1223611965

production-06

6. Package:

Loading 1,Loading 2,


7. Customers visiting:

20180405163711

4

turkey customer

UAE customer


8. Payment terms and after-sale service:

1) FOB Tianjin

2) Payment: 30% T/T deposit, and balance the 70% remained before shipping.

3) Delivery time: 50 working days.

4) Guarantee period: 12 months limited warranty starting from date of delivery. Shipping cost for parts to be replaced during warranty period have to be borne by the customer.

5) Spare parts: bearings, buttons, chains, magnetic valve, protective tube etc.

6) Installation and training:

1. If buyers visit our factory and check the machine, we will teach you how to install and us the machine, and also train your workers/technician face to face.

2. Without visiting, we will send you user manual to teach you to install and operate.

3. COST OF INSTALLATION:

The buyer should pay the installation charges (USD 80 one man one day). To the seller`s appointed account by T/T before the seller`s technicians go to the buyer`s factory. The buyer pays the seller`s technicians travel cost outside China, including round air tickets fee, accommodation and food, provide transportation from living hotel to the work place, necessary communication, and insurance, etc.


We also supply Other production for example : Vineyard Post Making Machine, Cable Tray Machine, Shelf Baseplate Machine, Door Frame Machine, ect.

Please check out if interest.





Hebei Taigong Roll Forming Machinery Co., Ltd.

 Hebei Taigong Machinery Co.,Ltd. was found in 1999, we are a top professional Cold Roll Forming Machine manufacturer engaged in designing and producing all types of high precision, hight tech, professionally designed. Using advanced technology and incorporating COPRA design software, we are able to manufacture to international standards for our clients. Cold Roll Forming Machine produced by TAIGONG, uses an advanced drive system. The complete system is integrated into a single unit, saving space, and improving the ease of use, and the safe operation of the Cold Roll Forming Machine. All the electrical and mechanical parts are readily available world wide.The Cold Roll Forming Machine are robust, and will with proper care and maintenance perform at maximum capacity. Our company is located in Cangzhou ,Hebei province, near major roads for ease of shipping. Main product include Purlin Roll Forming Machine, Highway Guardrail Roll Forming Machine, Spiral Corrugated Pipe Machine, Rib Lath Machine, Grain Bin Silo Machine, Metal Culvert Pipe Machine and so on.
